New 2.8'' inch ESP32 LCD Display Module ESP32-2432S028R 240*320 Resistive Touch Screen TFT with ILI9341 Driver for Arduino IoT
New 2.8'' inch ESP32 LCD Display Module ESP32-2432S028R 240*320 Resistive Touch Screen TFT with ILI9341 Driver for Arduino IoT
Regular price
$2.01 USD
Regular price
$2.01 USD
Sale price
$2.01 USD
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: DIYmall
Choice: yes
Display Mode: 240*320
High-concerned chemical: None
Model Number: FZ5815
Origin: Mainland China
Resolution: 320*240
2.8'' ESP32 LCD Display Module ESP32-2432S028R 240*320 Resistive Touch Screen TFT with ILI9341 Driver for Arduino IoT

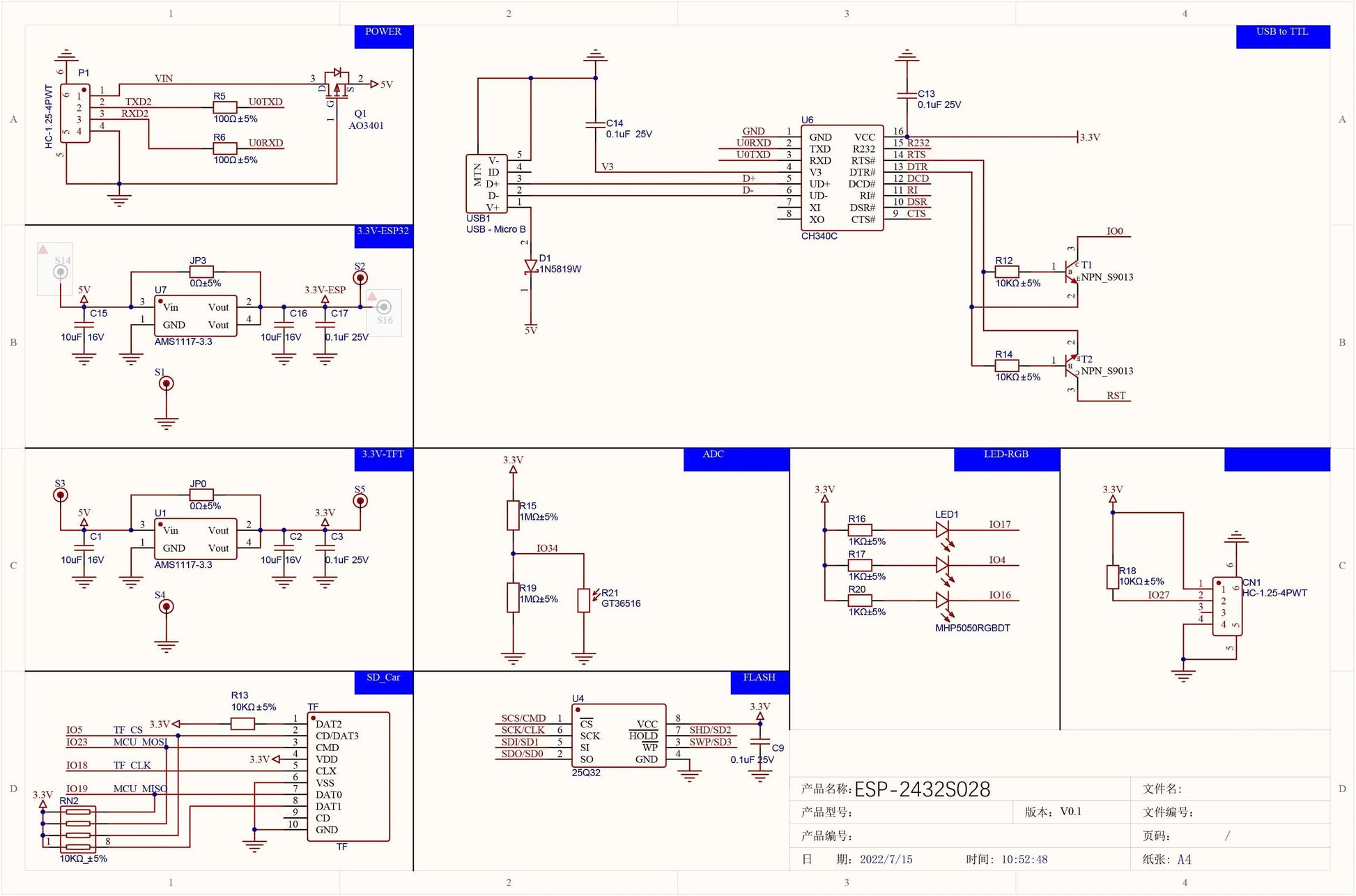

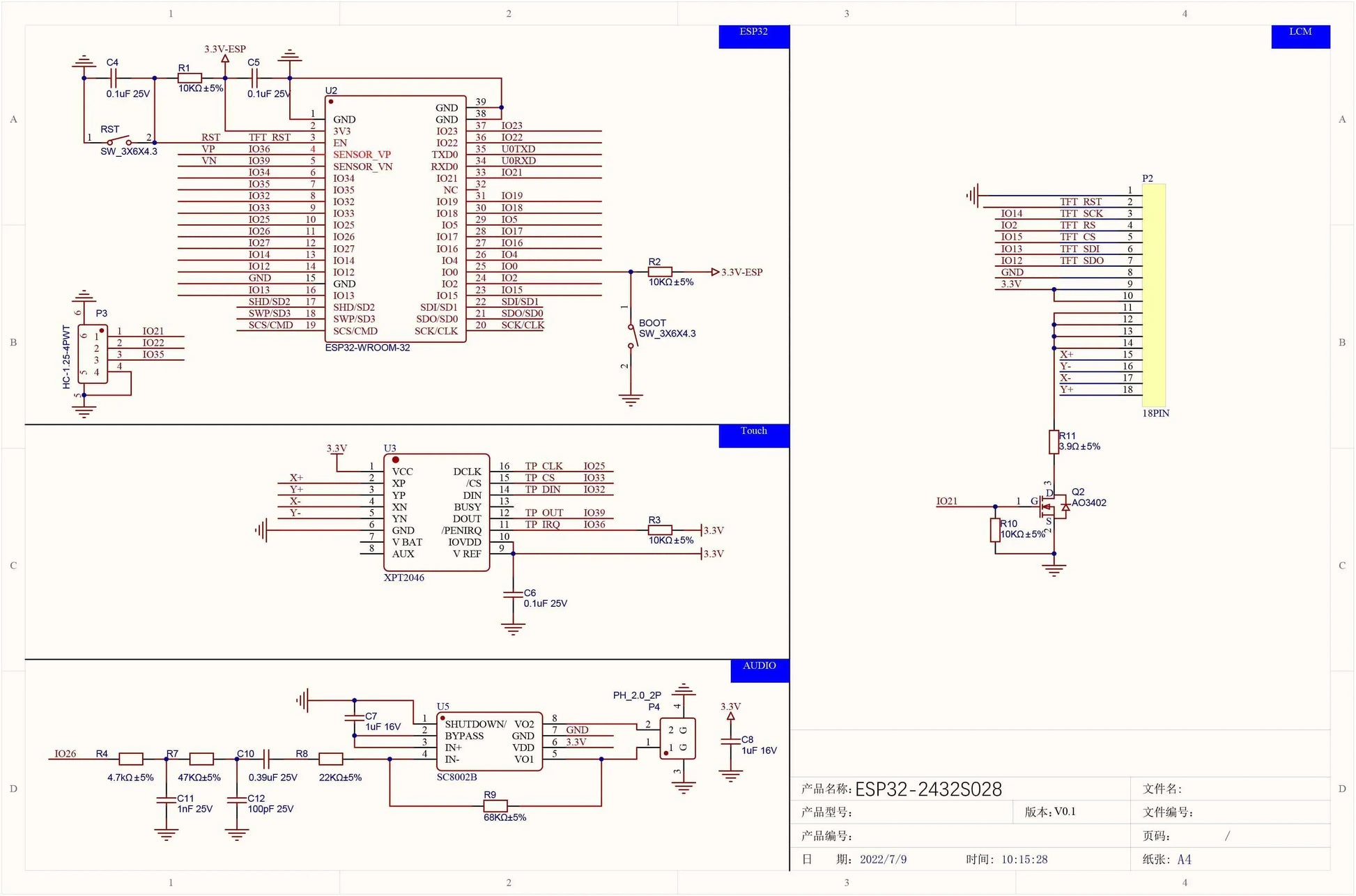

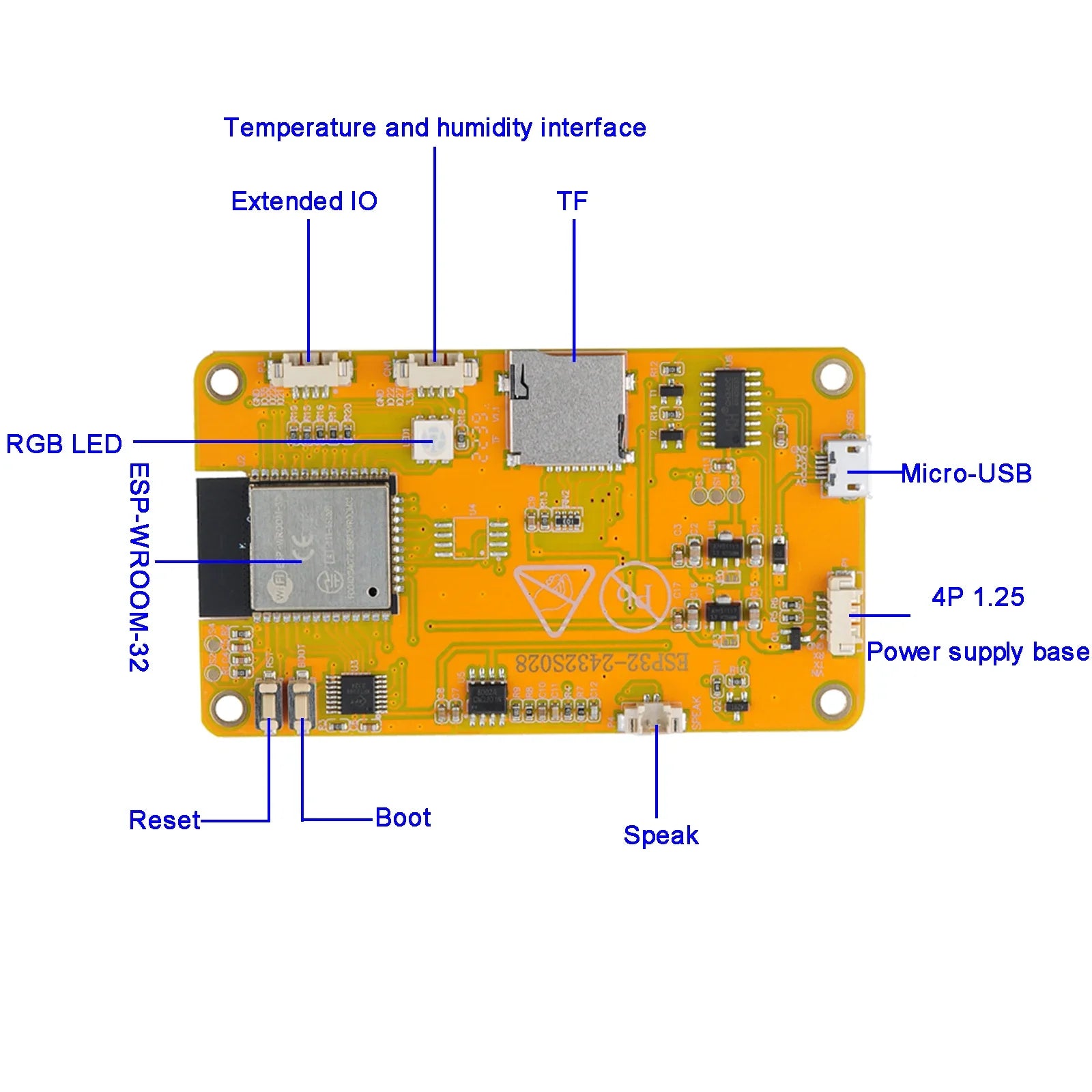

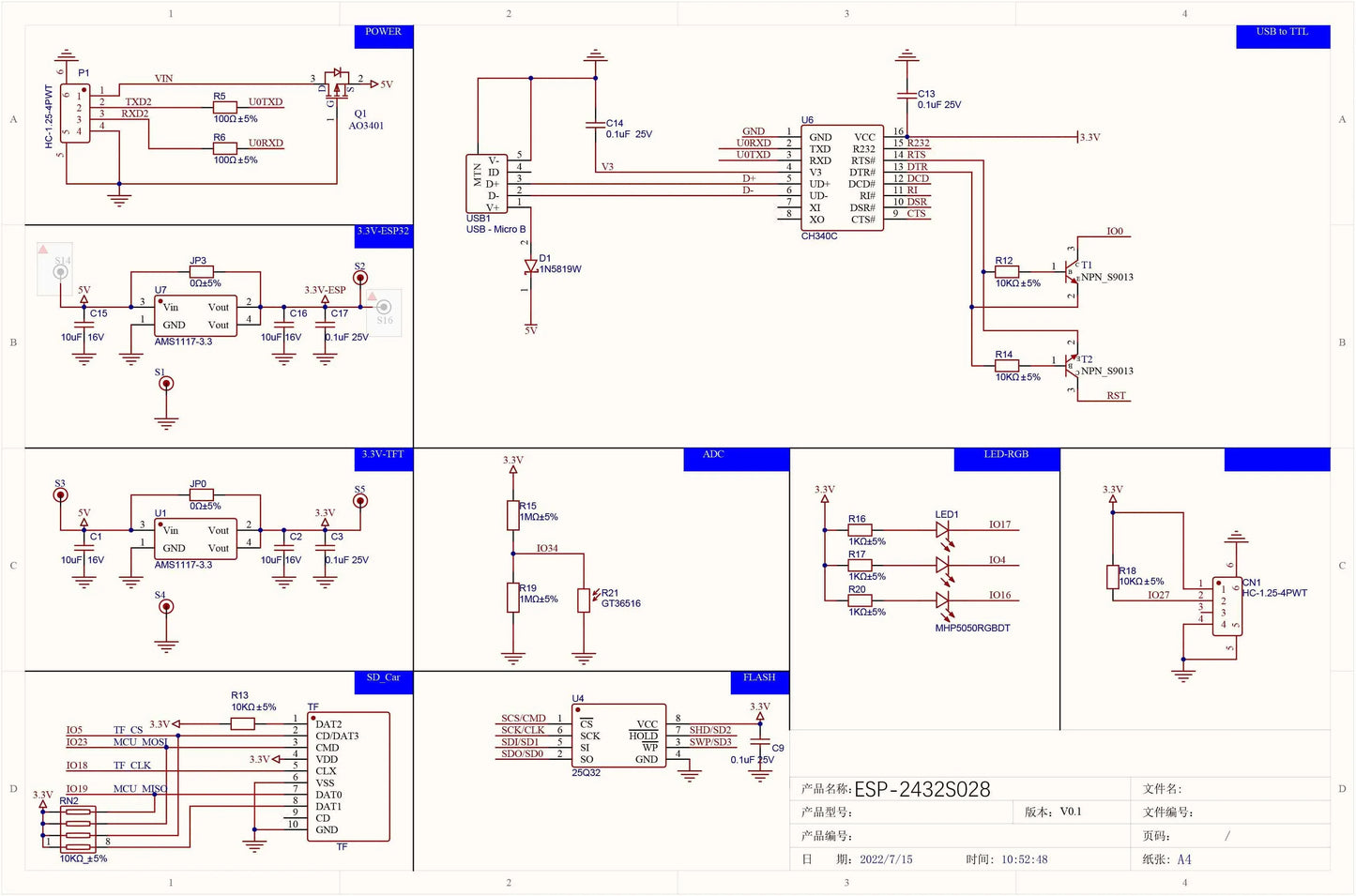

This LCD module uses ESP32-WROOM-32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB, The display resolution is240x320 ,resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photo sensitive circuit and RGB-LED control circuit. TF-card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface, this module supports development in Arduino-IDE, ESP IDE,Micropy-thon and Mi-xly.
Features:
2.8-inch color screen, support 16BITRGB65K color display, display rich colors
240X320 resolution
The sample program has been programmed in the factory and can be plugged in
With TF-card slot for easy expansion storage
Provide arduino library functions and sample programs to facilitate rapid secondary development
Support one-click download program
Military-grade process standards, long-term stable work
Parameters:
Display color: RGB 65K color
Resistive touch: ESP32-2432S028R
Size: 2.8 inch
Type: TFT
Driver chip: ILI9341
Resolution: 320 x 240 (Pixel)
Effective display area: 43.2 x 57.6(mm)

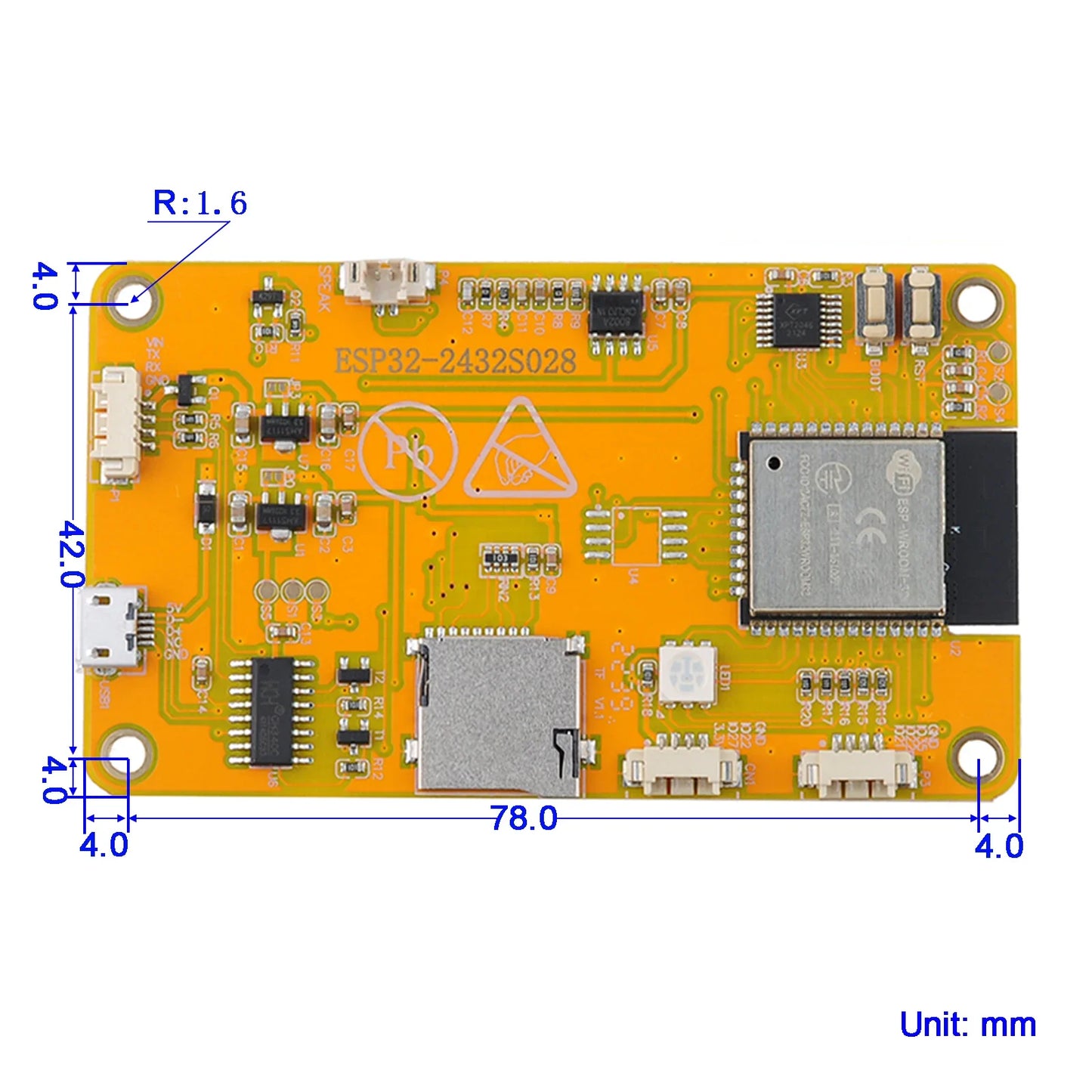

Module size: 50.0 x 86.0(mm)
View: >60°
Operating temperature: -20C~70℃
Storage temperature: -30℃~80℃
Operating Voltage: 5V
Power consumption: About 90mA
Product weight: About 50g

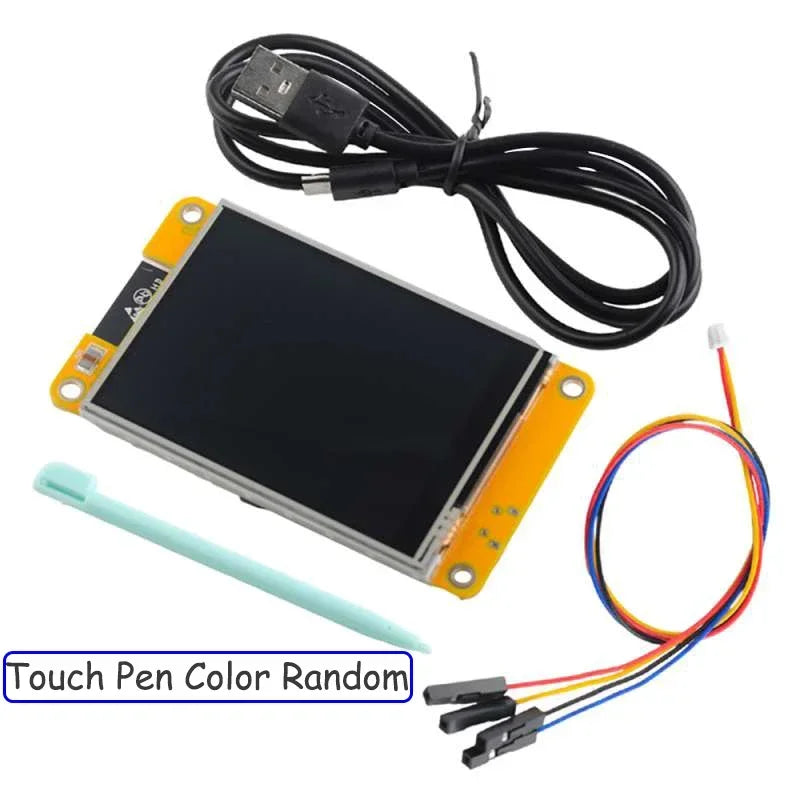

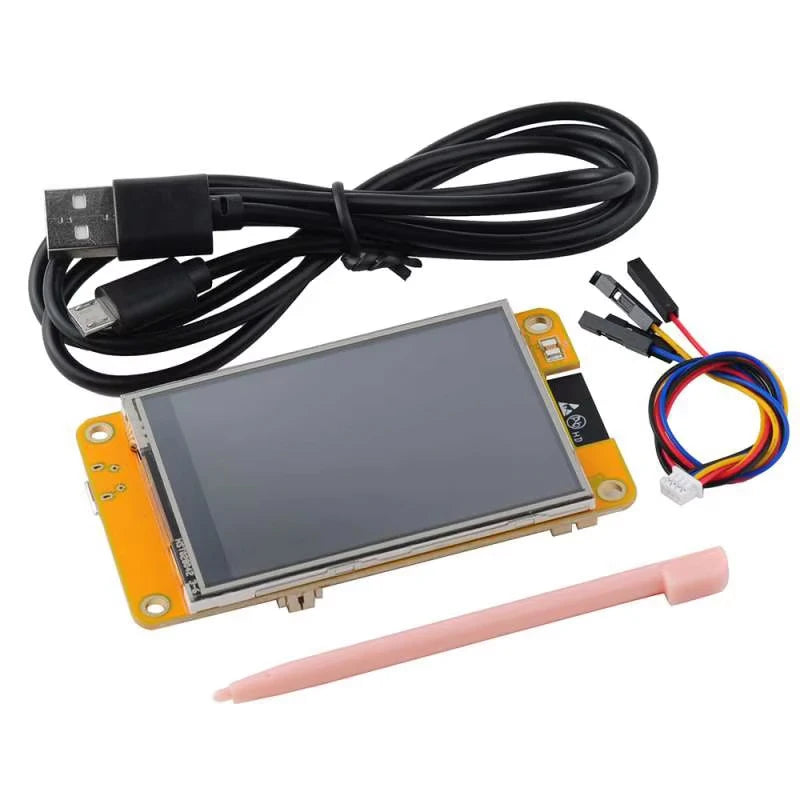

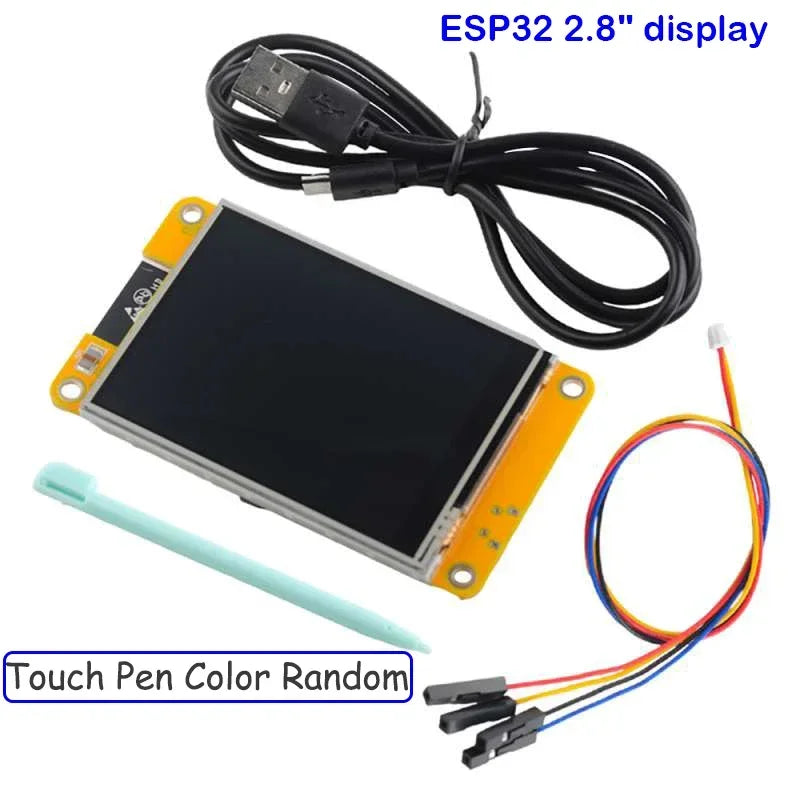

Product:
Kit 1:
1 X 2.8'' ESP32 Dispaly Module
1 X USB-Cable
1 X Touch Pen ( Color: pink or white or black or green)
1 X 4P Connector Cable

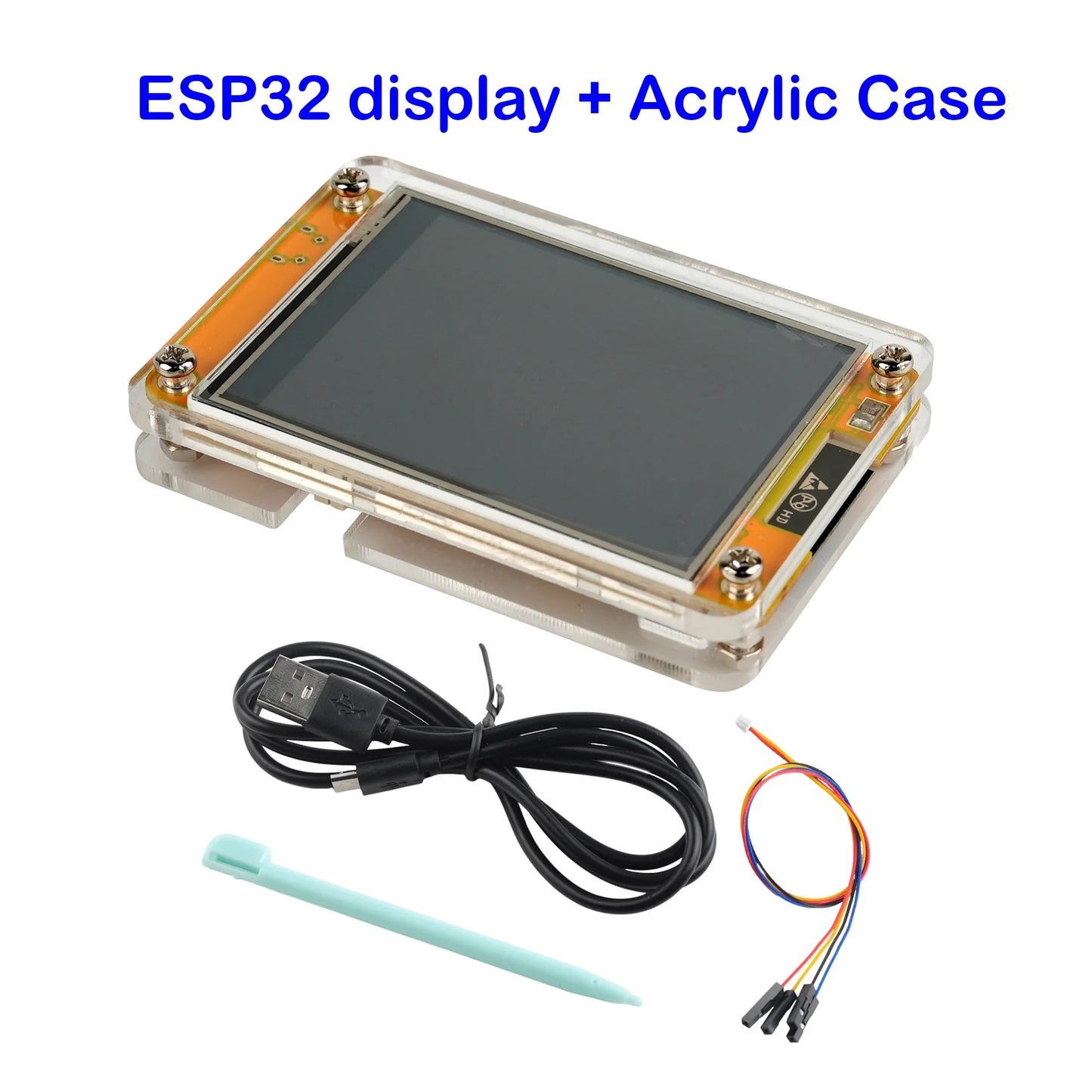

Kit 2:
1 X 2.8'' ESP32 Dispaly Module
1 X USB-Cable
1 X Touch Pen ( Color: pink or white or black or green)
1 X 4P Connector Cable
1 X Acrylic case for ESP32 2.8-inch resistive touch screen

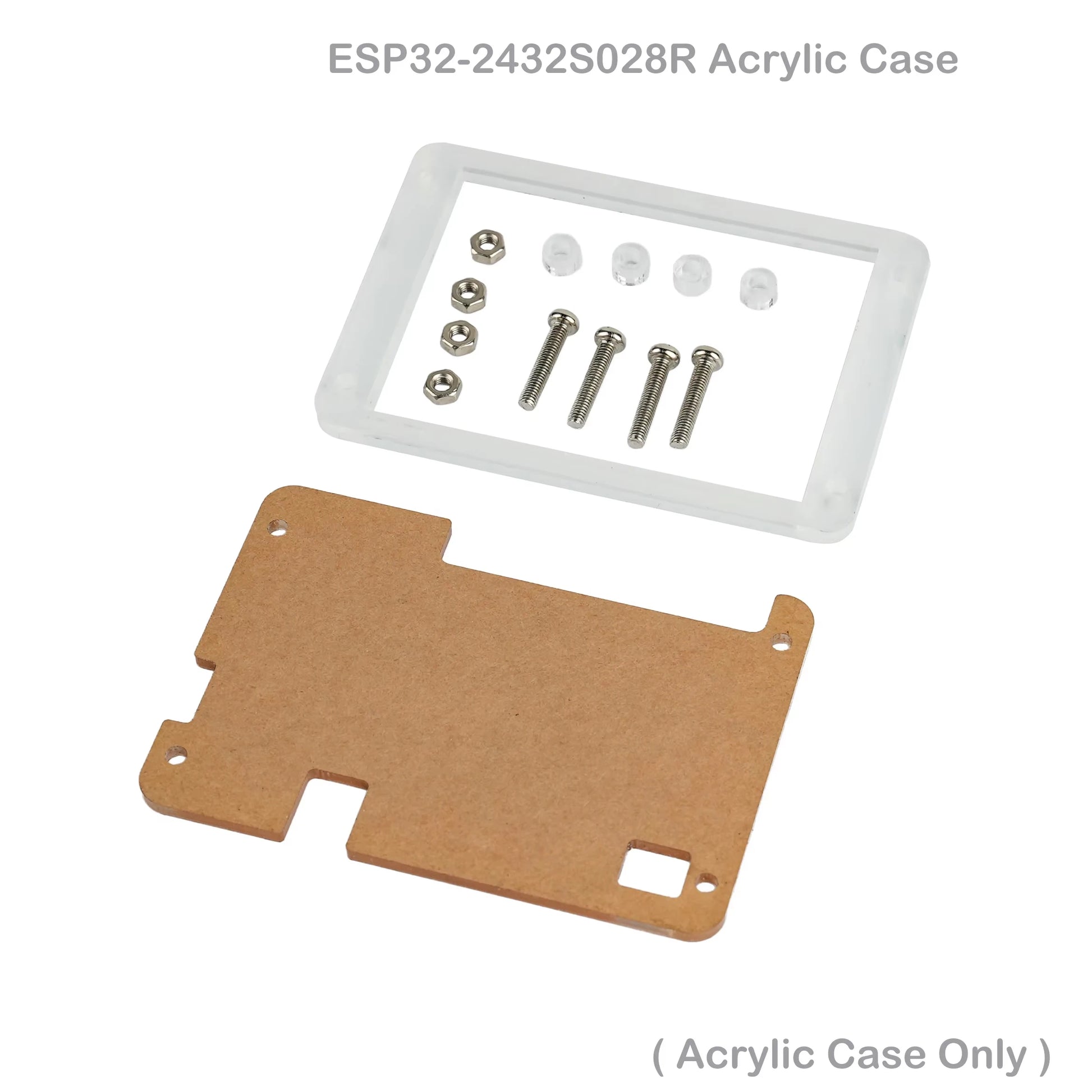

Kit 3:
1 X Acrylic Case for 2.8 inch ESP32 module
Instructions for use:
https://drive.google.com/file/d/1E85GDLWHMqLSKMN7CNddRtbESKiiOrmG/view?usp=sharing
