Lucky Miner Bitcoin NMMiner ASIC Mining BTC BCH BSV DGB Lottery Device Crypto Solo Miner Mining Machine Official Ultra BM1366
Lucky Miner Bitcoin NMMiner ASIC Mining BTC BCH BSV DGB Lottery Device Crypto Solo Miner Mining Machine Official Ultra BM1366
SPECIFICATIONS
Asic Chip: BM1366
Battery Included: No
Brand Name: Heltec Automation,NMTech
Display: 1.14 inch TFT-LCD ; 135*240;Full-color
Display Resolution: 240 x 320
Fan: DC 5V/Dual bearing brushless Fan
Function: BTC Lottery

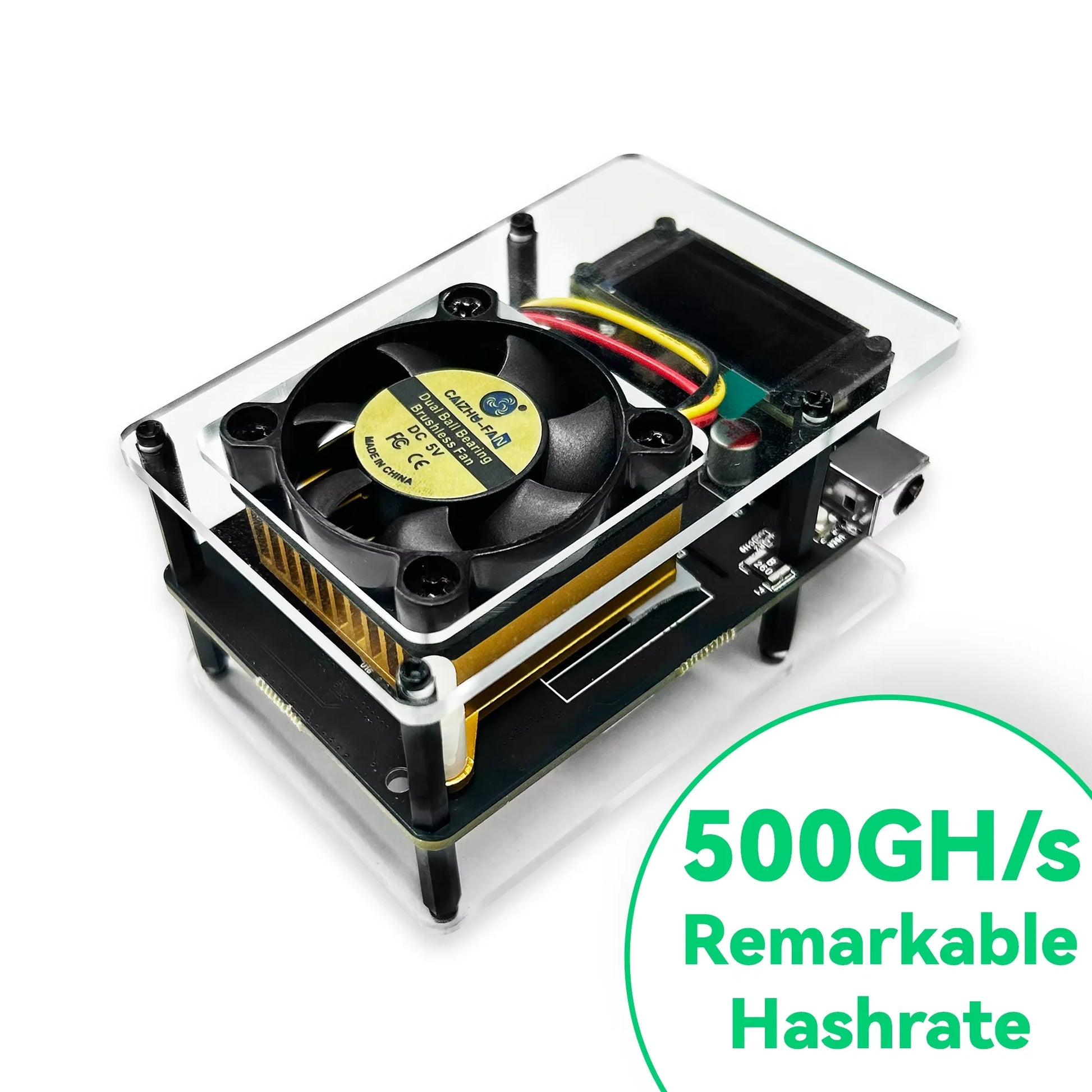

Hashrate: 500 ~ 550 GH/s

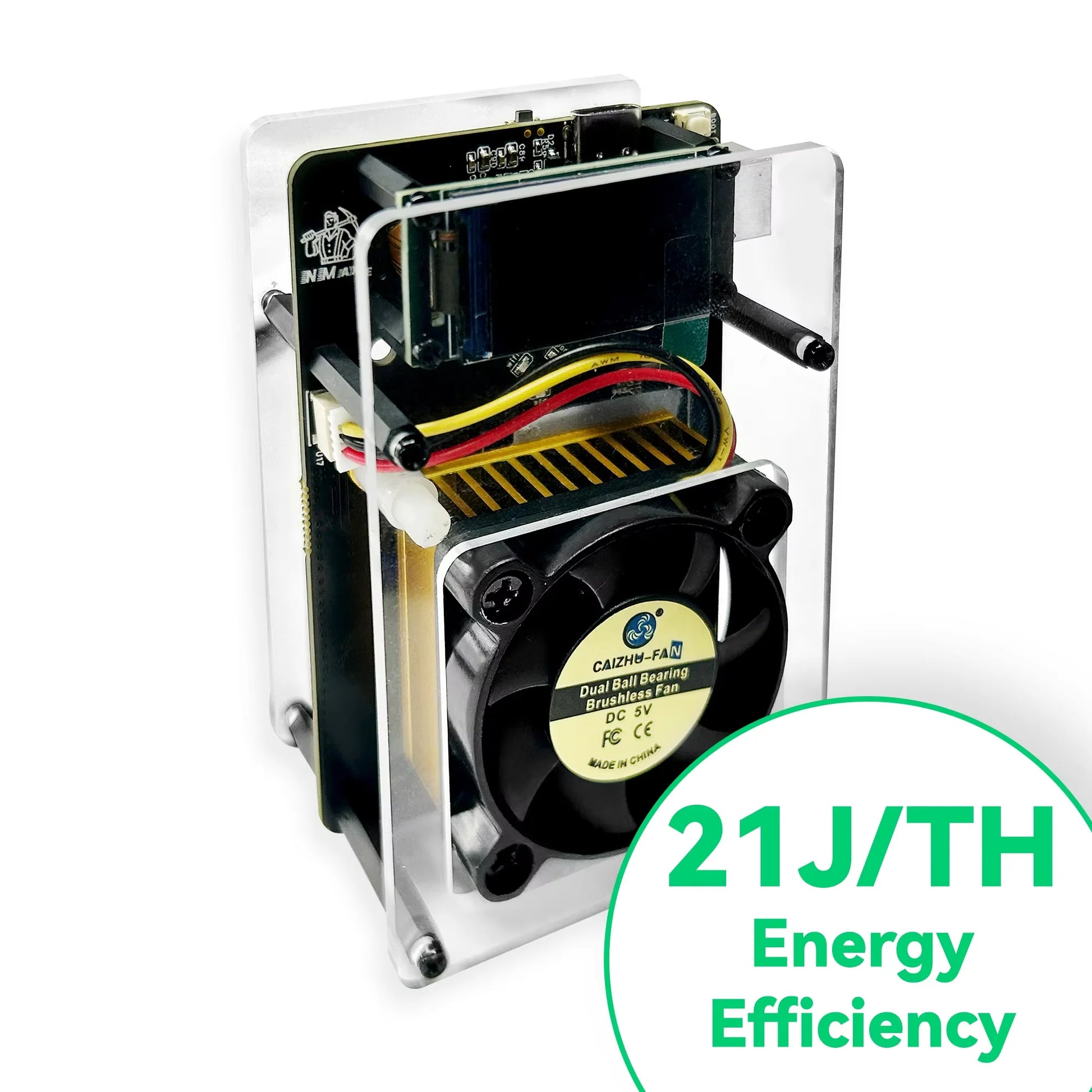

Heat sink: 40*40*14mm
High-concerned chemical: None
MCU: ESP32-S3R8
Material: Silicon
Model Number: NM-Axe
Operating temperature: -20~60℃
Origin: Mainland China

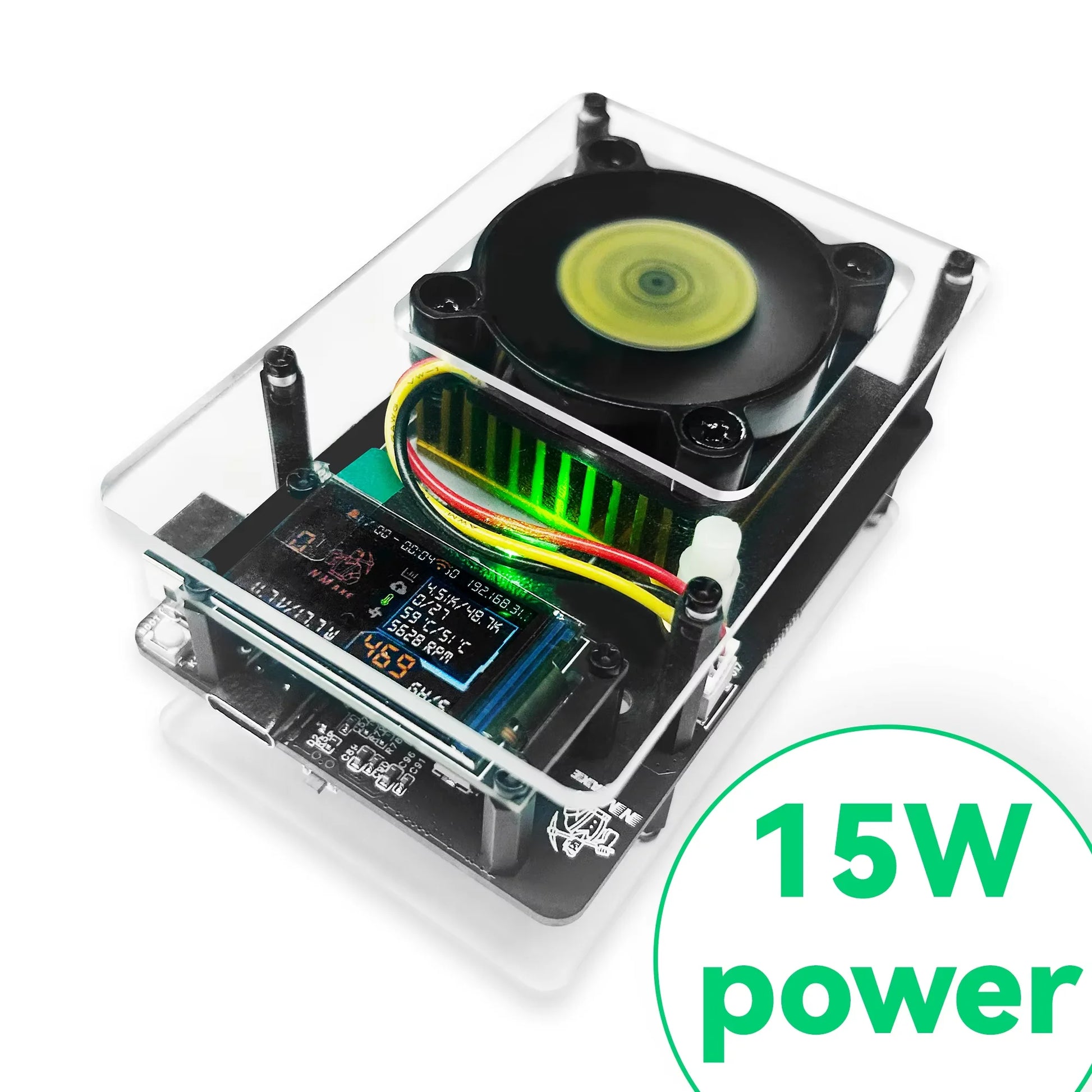

Power Consumption: 15~20W
Power Interface: Type-C USB\DC2.0
Power supply range: 9/2.5A~12V /2A
Storage temperature: -30~70℃
Wi-Fi: 802.11 b/g/n

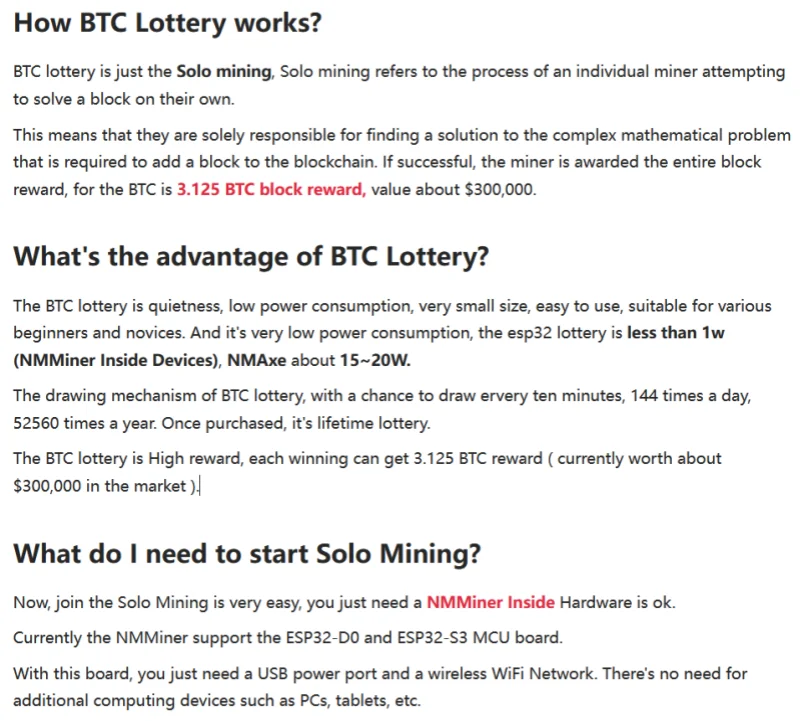

Summary

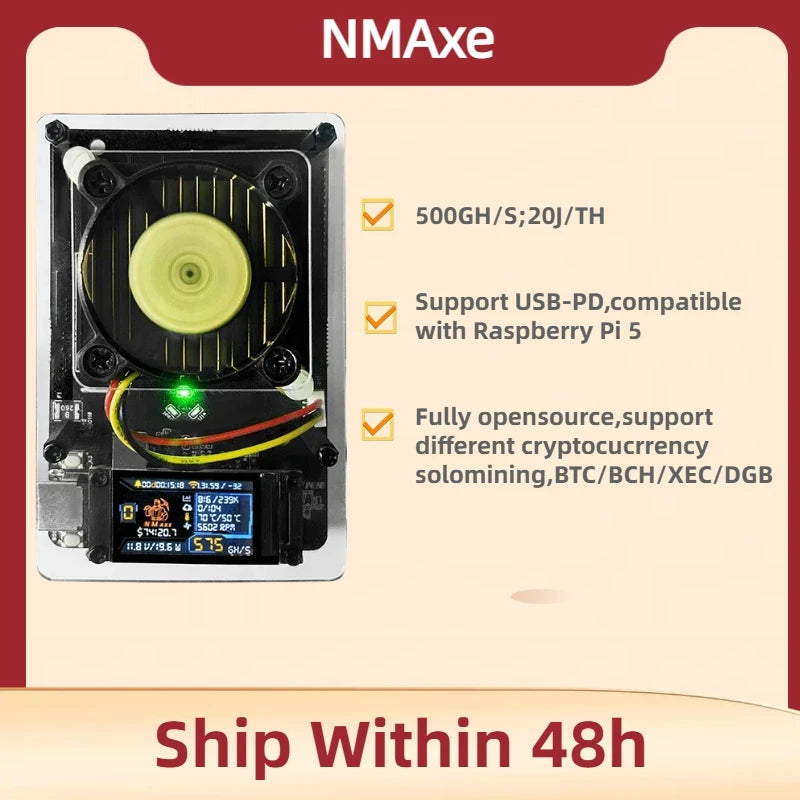

NMAxe is a NMMiner Offical development board, with BM1366 ASIC and ESP32-S3, with Wi-Fi, Bluetooth. It's a Solo mining lottery Miner, perfect for solo miners aiming to strike a Bitcoin block. The NMAxe is your golden ticket to potentially earning the 3.125 BTC block reward. This high-efficiency, rewarding experience makes it the ultimate lottery miner on the market. For current NMMiner owners, the NMAxe boosts your mining speed from 117 KH/s to 500~550 GH/s, the winning probability has increased by nearly 5 million times.
Important Notice:
1.The hashrate is a fluctuating value that fluctuates around 500GH/s. And the parameter should set to Frequency 575MHz, and Vcore 1300 mV.
2.To prevent the product from getting scratched during transportation, we've covered the acrylic panel on the NMAxe with a protective film. After receiving the product, you need to remove this film; otherwise, the screen will be difficult to see clearly.
3.Many people don't know how to connect to WiFi. If you still can't solve the problem after reading the operation manual, please contact us. Whenever the NMAxe malfunctions, feel free to contact us. We have highly professional engineers who can offer operational guidance. They will help get your NMAxe up and running properly.
4.Reference guide：
https://github.com/NMminer1024/ESP-Miner-NMAxe/tree/NMAxe/usermanual
5.If possible,join us through this telegram address: https://t.me/NMAxe1024，or you can search for "NMAxe1024" in Telegram to contact us.
Main Features
● Full graphic screens over 1.14 inch IPS screen.
●Bitmain’s BM1366AL chip.
●Two accessible buttons.
●Operates exclusively on 2.4 GHz Wi-Fi.
● Requires a 12V power supply with at least 2A.
● Support normal USB-PD supply.
● Easy setup via the AxeOS portal.

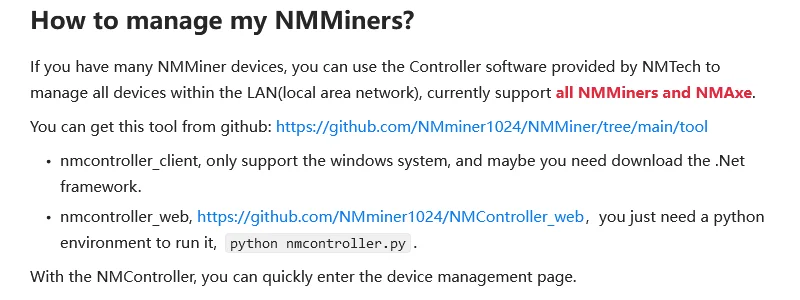

● NMMiner Group Controller for monitoring, Can easily manage multiple devices, both NMMiner and NMAxe.
● Support different Cryptocucrrency using SHA256d Solo mining, such as BTC/BCH/XEC/DGB.
● The device is compatible with Raspberry Pi 5-size structure and can be compatible with Raspberry Pi related shell devices.
Differences/Improvements from Bitaxe Devices
● The NMAxe also support the "SSL connections", which solving the information security problems in some regions and countries.
● At the same time, the device supports "USB PD power supply", so common mobile Type-C adapters can used to power the NMAxe.

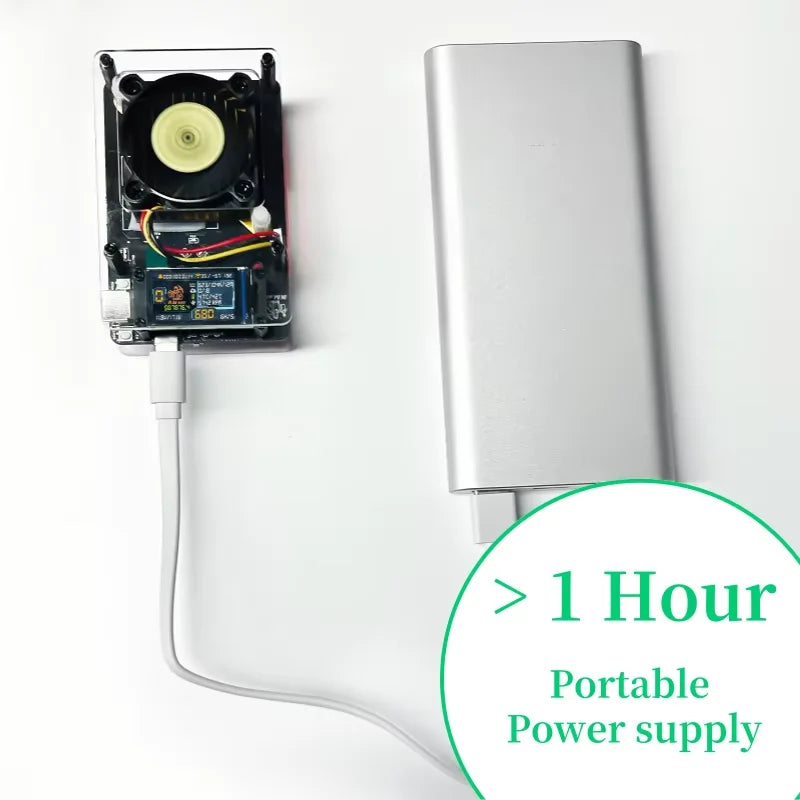

● Besides, the portable power bank supplies power to the NMAxe devices. A regular 10000mAh power bank can provide power to NMAxe devices for over 1 hour. So, even with a portable power bank and WiFi hotspot, you won't miss the opportunity to get a BTC block reward.
●NMMiner group controller, which can helps to manage NMMiner and NMAxe devices together, with the NMController can easy goto the AxeOS.
Specifications
Parameters |
Description |
Origin |
Mainland China |
ASIC |
BM1366 |
Master Chip |
ESP32-S3R8, Xtensa32 dual core processor |
Hash Rate |
500 ~ 550 GH/s |
Wi-Fi |
802.11 b/g/n, up to 150Mbps |
Device management |
Web service Axe OS/NMController |
Power Interface |
Type-C USB\DC2.0 |
Supply mode |
DC\PD3.0 DC adapter and PD charger are supported |
Power supply range |
9/2.5A~12V /2A |
Power Consumption |
15~20W |
Display |
1.14 inch TFT-LCD ; 135*240;Full-color |
Fan |
DC 5V/Dual bearing brushless Fan |
Heat sink |
40*40*14mm |
Memory 512KB SRAM; 8MB PSRAM; 384KB ROM; 16MB SPI Flash |
Dimensions 85*56*44mm |
Operating temperature -20 ~ 70 ℃ |

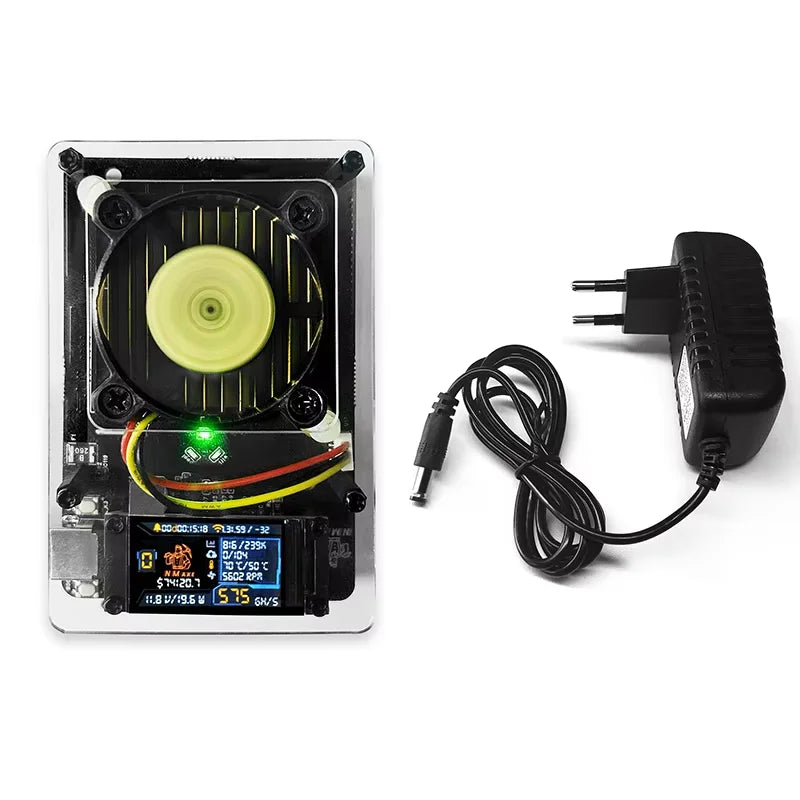

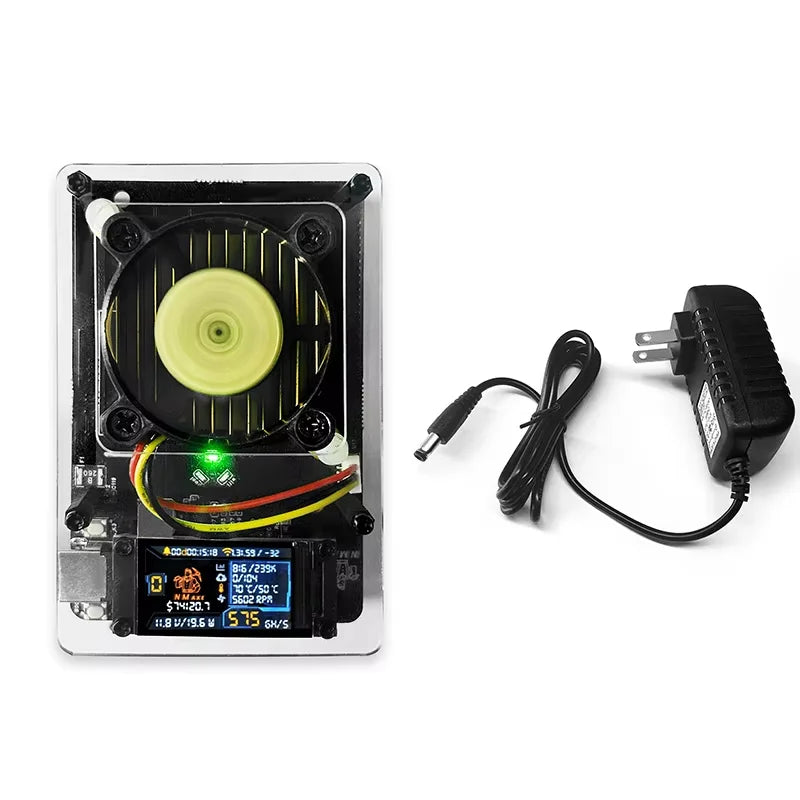

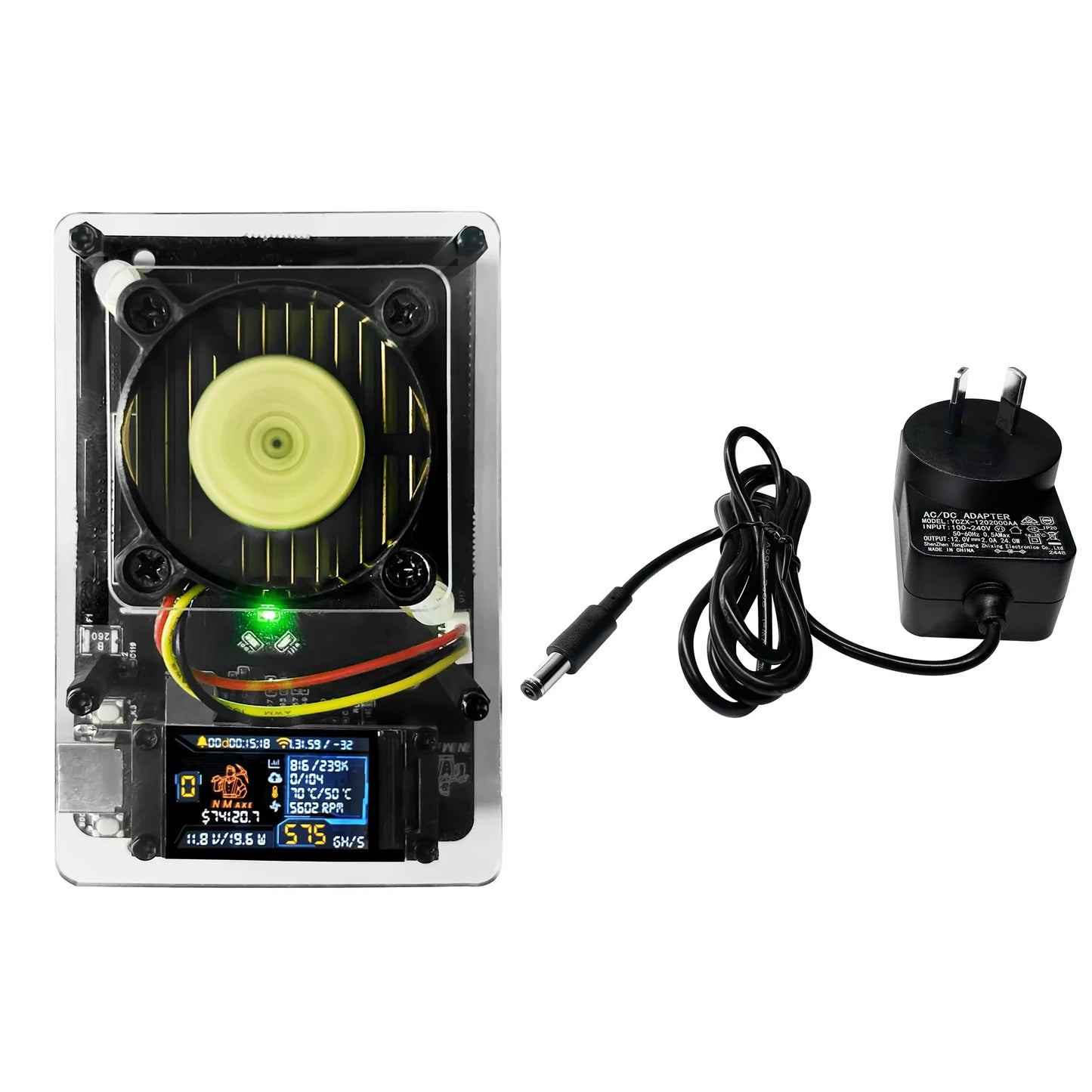

Packing List
The default packing list without selecting any accessories is as follows:
Item |
Quantity |

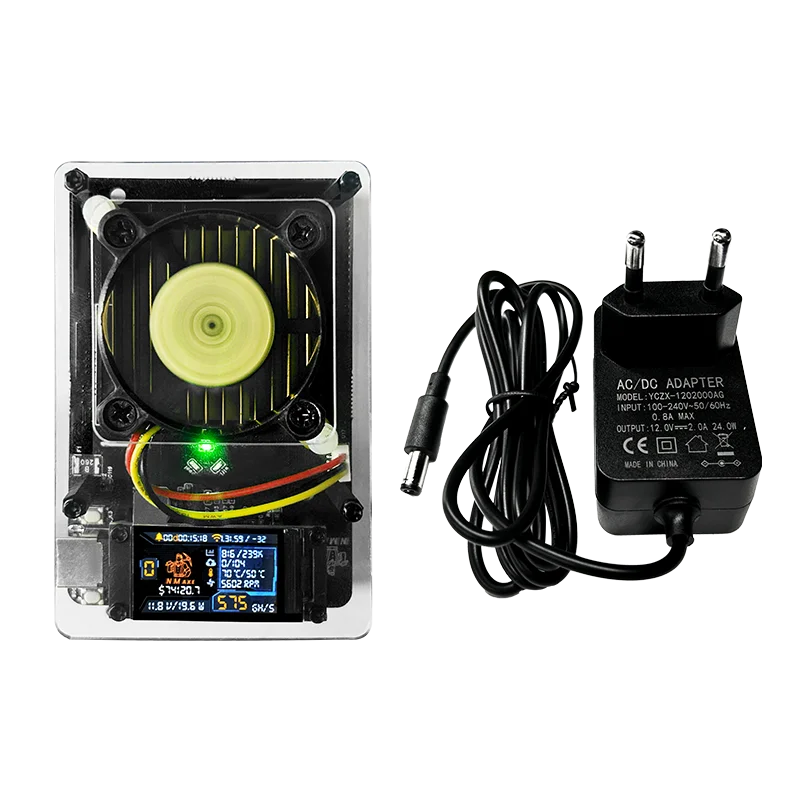

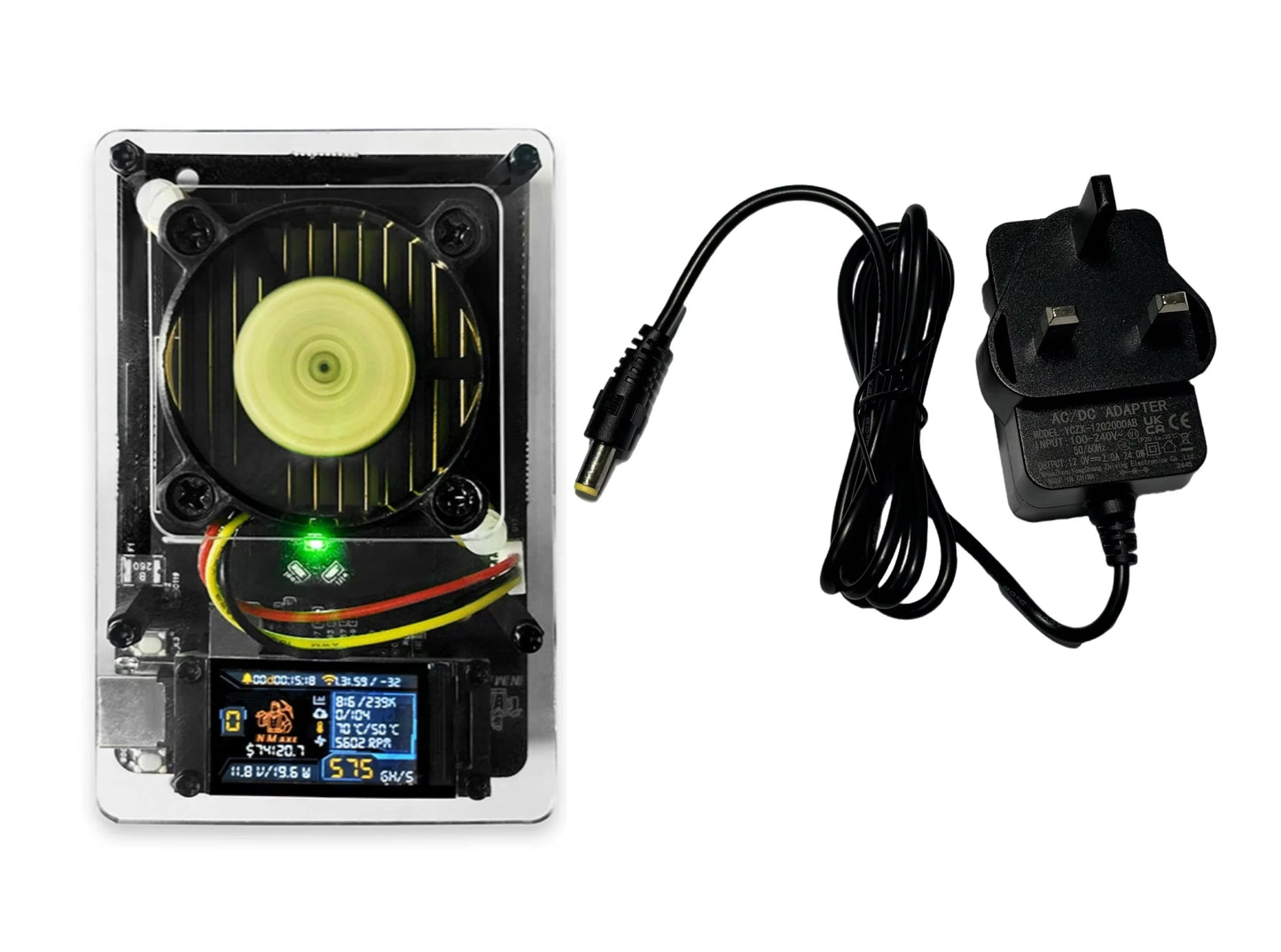

NMAxe |
×1 |
2V*12A DC 2.0 Power |
×1 |
Q&A
Contact us
● Our NMAxe Official Telegram : https://t.me/NMMiner
● Our Official Web Site : https://www.nmminer.com

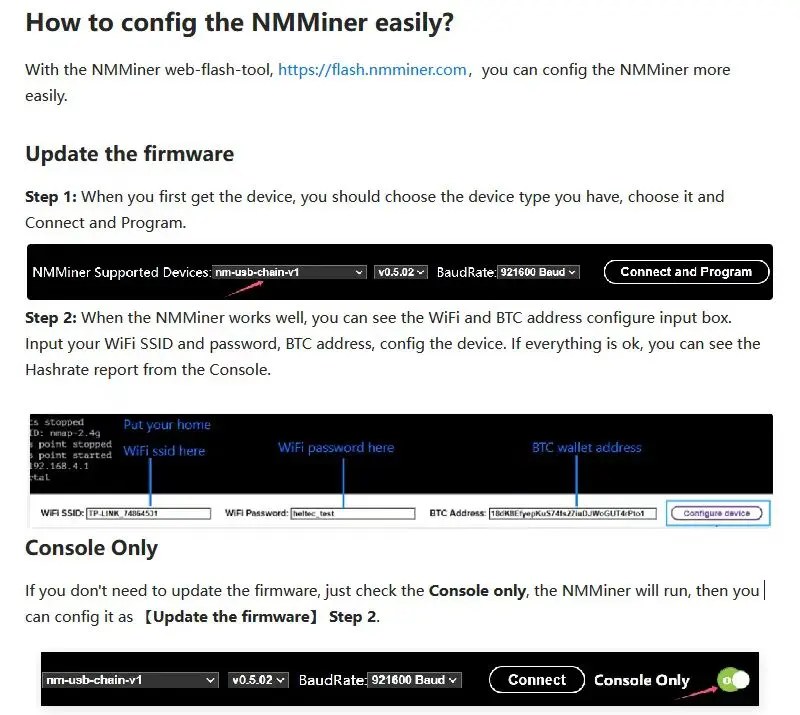

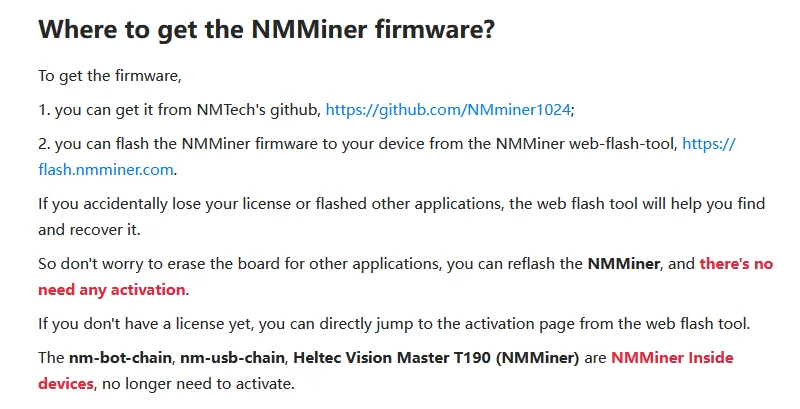

● The web flash tool : https://flash.nmminer.com
● The NM XEC solo pool (fork from the ckpool, friendly for Axe Devices) : https://pool.nmminer.com
