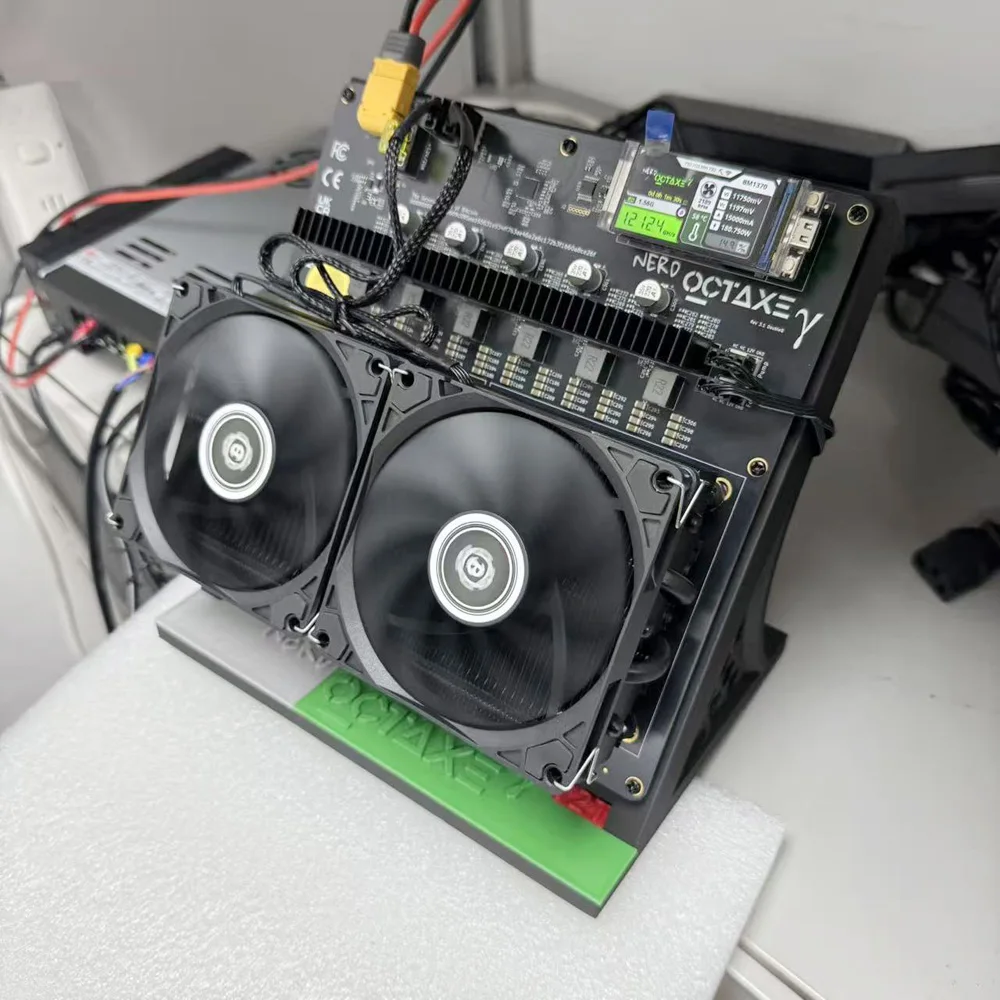

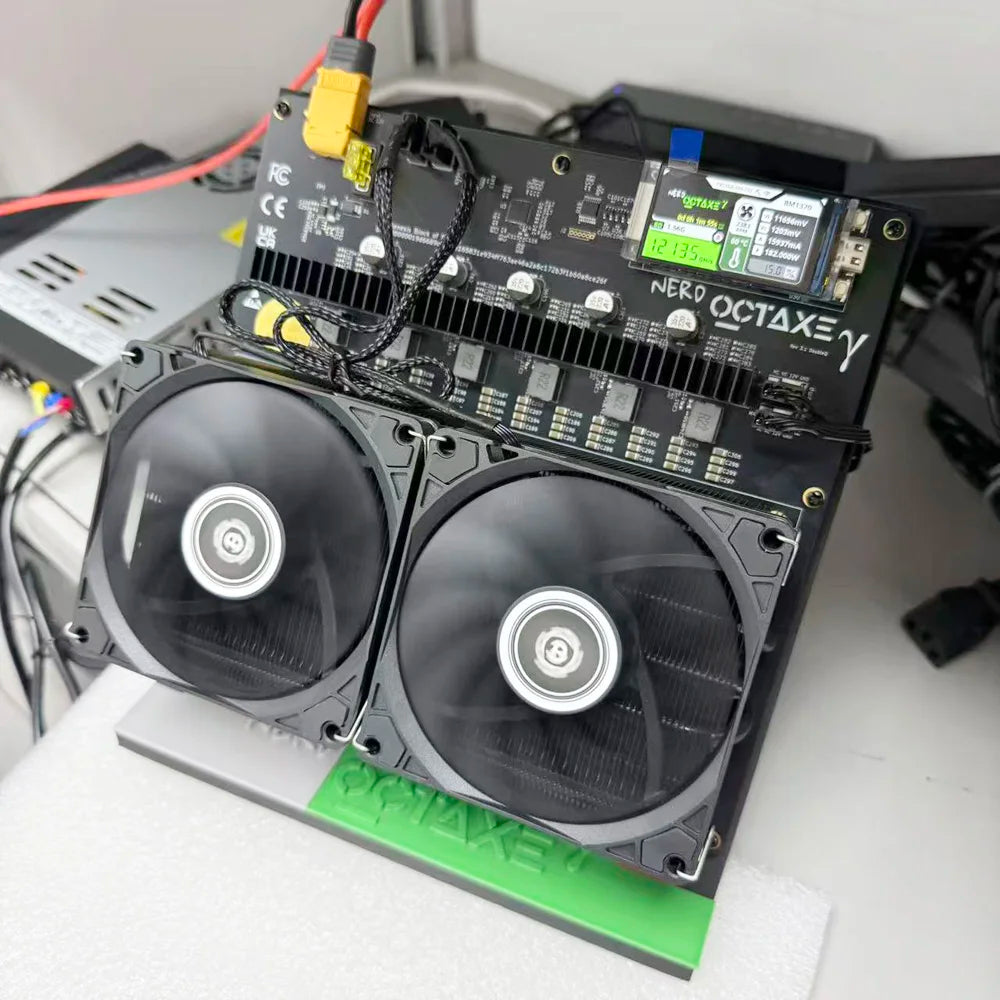

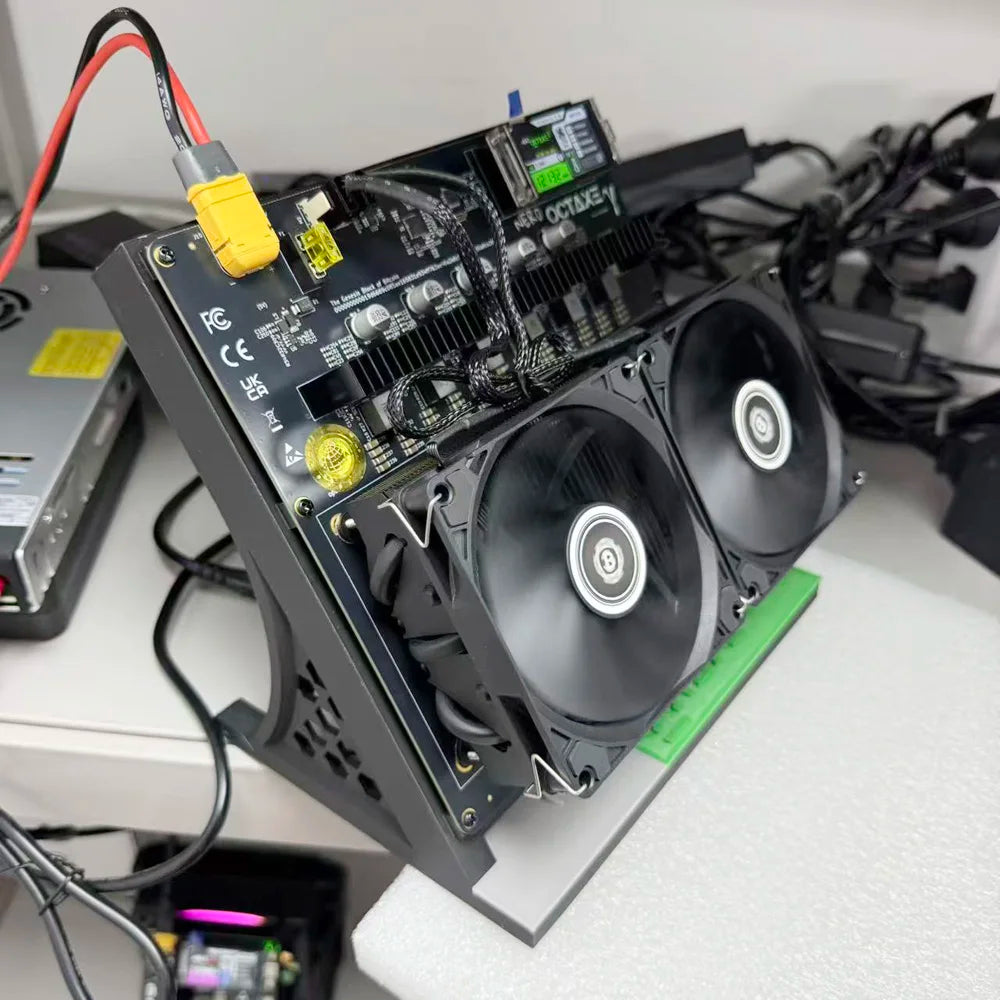

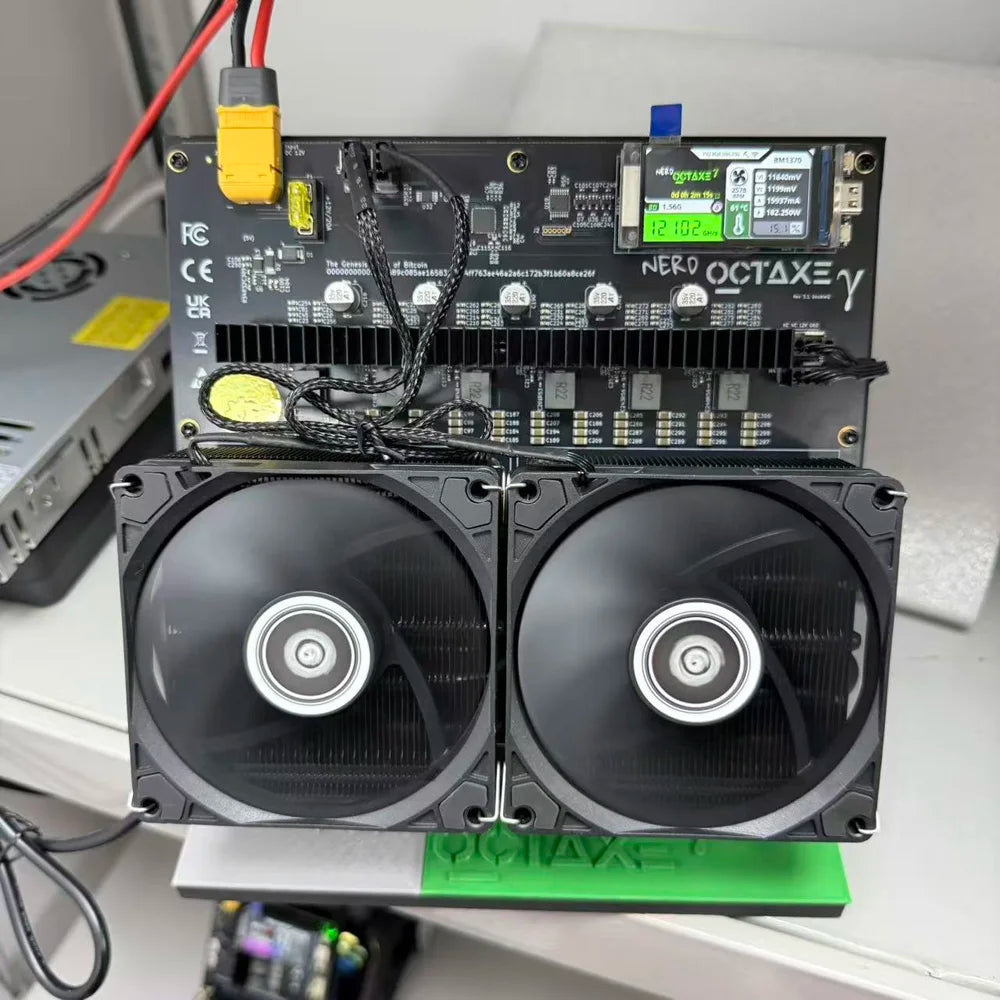

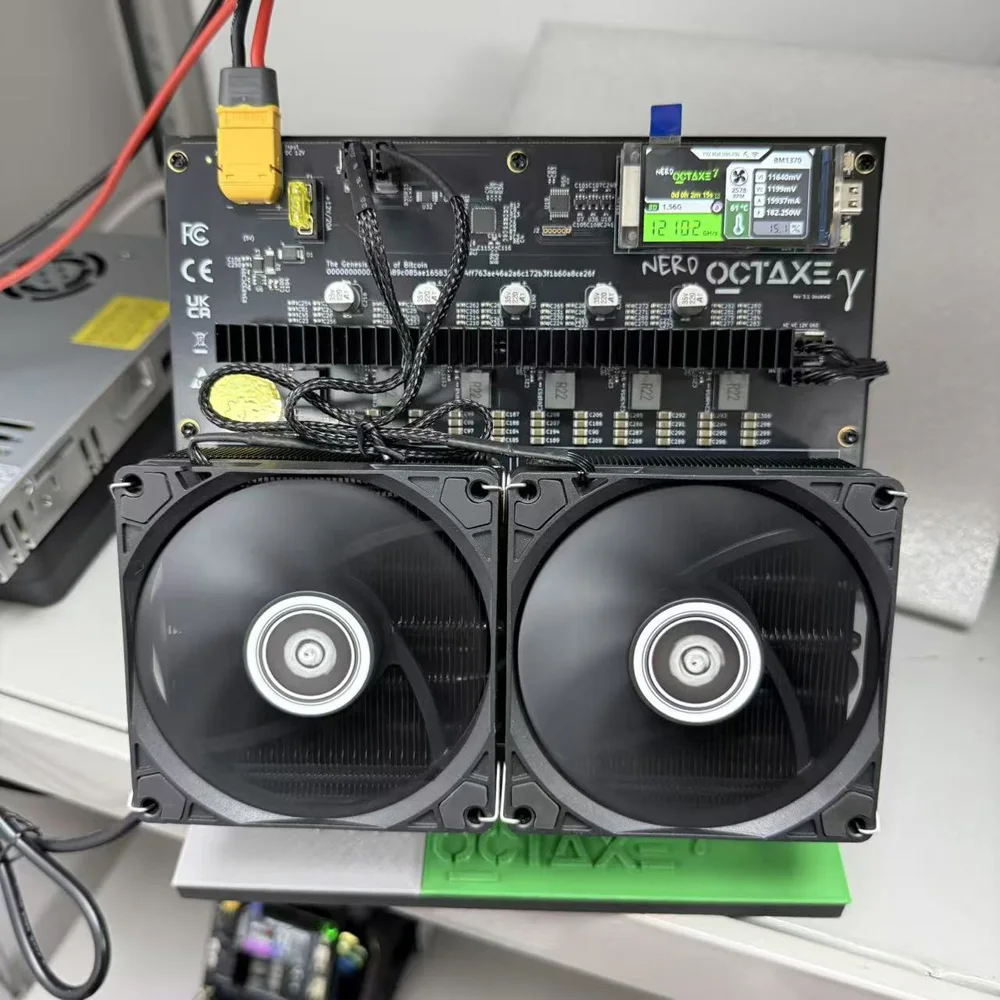

Nerdoctaxe Rev 3.1 12TH/S@200W — High-Performance, Quiet Home Miner

The Nerdoctaxe Rev 3.1 is BitSoloPlayer's next-generation home Bitcoin ASIC miner, optimized for individual and home users. It combines powerful computing power, high energy efficiency, and low noise, making it ideal for home mining and lightweight mining farms.

Key Performance Highlights

🔹 High Hashrate Output

Equipped with 8 × BM1370 ASIC chips, the Rev 3.1 achieves a maximum SHA-256 hashrate of approximately 12 TH/s, far exceeding the level of similar home miners, providing a strong computing foundation for Bitcoin and other SHA-256 cryptocurrencies (such as BTC and BCH).

🔹 Excellent Energy Efficiency

Typical power consumption is approximately 160W–200W (standard 12V/18A power supply), with an efficiency of approximately ~15.8 W/TH, balancing high performance and energy-saving operation to effectively reduce electricity costs.

🔹 Good Thermal Management

Rev 3.1 adopts an upgraded 6-phase VRM power supply design and TPS53667 voltage controller, optimizing power distribution and PCB layout, improving heat distribution and stability, making the machine more stable and reliable under continuous high load operation, while significantly improving heat dissipation performance.

❄️ Rev 3.1 Core Upgrade: Dual Rear Silent Fans · Comprehensive Enhanced Cooling System

In Nerdoctaxe Rev 3.1, we've made key upgrades to the overall cooling system to meet the needs of long-term stable operation and home environments:

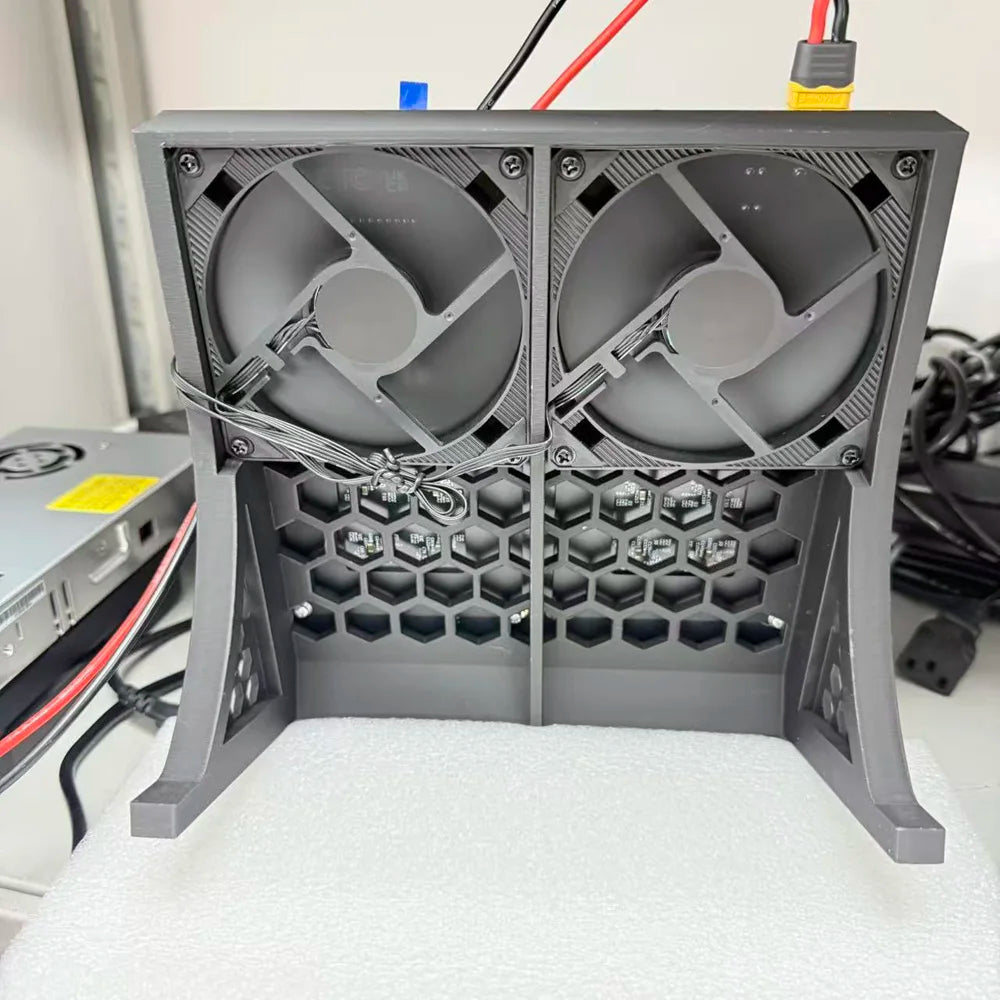

🔹 Dual 80×80×10mm Rear Silent Fan Design

Building upon the original cooling structure, Rev 3.1 adds two high-quality 80×80×10mm silent fans, forming a more efficient rear exhaust channel, significantly improving airflow organization and heat dissipation efficiency.

🔹 Significantly Reduced Temperature of Key Chips (Measured Data)

Through optimized airflow and fan layout, significant temperature control improvements have been achieved under typical operating conditions:

VR power management chip temperature reduced by approximately 30%

BM1370 ASIC chip core temperature reduced by approximately 15%

This upgrade effectively alleviates heat buildup issues during high-load operation, significantly improving system stability and device lifespan.

🔹 Quiet Operation and Heat Dissipation, Truly Suitable for Home Environments

The selected fans ensure sufficient airflow while strictly controlling noise levels, allowing Rev 3.1 to maintain a quiet operating experience suitable for home and office scenarios despite increased computing power and power consumption.

🏡 Home-Friendly Design

📊 Intuitive Control and Monitoring Interface

The built-in LILYGO T-Display S3 color display, combined with custom-developed dedicated ESP-Miner firmware and the AxeOS web management interface, enables convenient operation of settings, monitoring, and mining pool management through both local screen and Web UI, significantly lowering the barrier to entry.

🔌 Plug and Play Kit

The product comes standard with a 12V 18A power supply suitable for the target market, with plug options available for different regions. It's ready to use out of the box; users only need to connect power and network to start mining.

🔇 Optimized Quiet Operation

The compact design, suitable for home and office environments, combined with effective airflow and heat dissipation, maintains high computing power while keeping noise levels within a reasonable range, providing a more comfortable environment for daily life.

📦 Package Contents

Nerdoctaxe Rev 3.1 ASIC Lotto Machine ×1

12V 18A Power Supply ×1 (with compatible plug)

Quick Installation Guide and Debugging ManualNerdoctaxe Rev 3.1 12TH/S@200W — High-Performance, Quiet Home Miner
